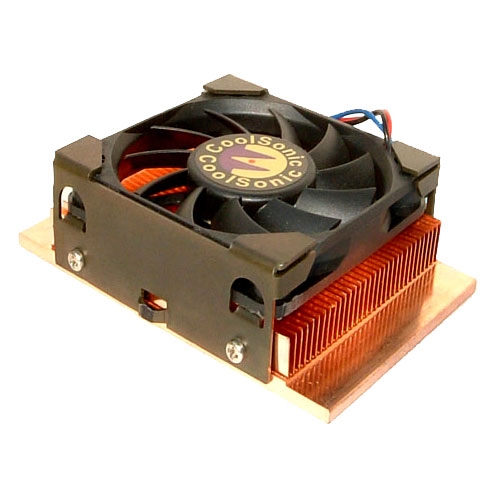

CS-4621

Product Description

Specifications

• Application : Socket 478 - 1U
• Support : Overall Dia. : 25mm x 60mm x 88.6mm
• Weight : 300g

Heatsink

• Heat sink size : 12.5 x 60 x 88.6 mm
• Heatsink Material : Copper C1100 - Produced by Fins Skiving Technology
  with well surface treatment (One piece structure)
• Thickness of Fin : 0.4mm
• Fin Pitch : 1.5mm
• Total Fins : 32 Fins

DC Fan

• Fan Size : 60 x 60 x 10 mm
• Max Airflow : 20.26 CFM
• Speed : 4,800 R.P.M. (±10%)
• Rated Voltage : 12V
• Noise Level : 31 dBA
• Approval : CE, TUV, FCC (for Fan)
• Warranty : 3 years
• OEM/ODM : Available
