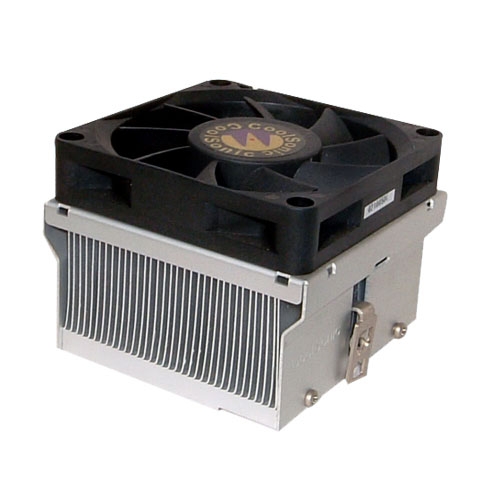

CS-2673-B

Product Description

Specifications

• Application : Socket 370, A/462
• Support : AMD Athlon XP 2400 + and UP
• Overall Dia. : 72mm x 72mm x 56mm
• Weight : 210g
• Material : Pure Aluminum - 1070 with well surface treatment
  (Produced by Skiving Technology one piece structure)
• Thickness of Fin : 0.5mm
• Fins Pitch : 1.35mm
• Total Fins : 34 Fins
• Diemension of Heatsink : 61.5mm x 70mm x 38mm (H)
• Diemension of Fan : 74mm x 74mm x 15mm
• Speed : 3,900 R.P.M. (±10%)
• Bearing : Ball
• Rated Voltage : 12V
• Air Flow : 38.20 CFM
• Noise Level : 39.0 dBA
• Voltage : DC 12V
• Approval : CE, TUV, FCC (For Fan)
• Warranty : 3 years
• OEM/ODM : Available
